Miracle Nyvin Cables

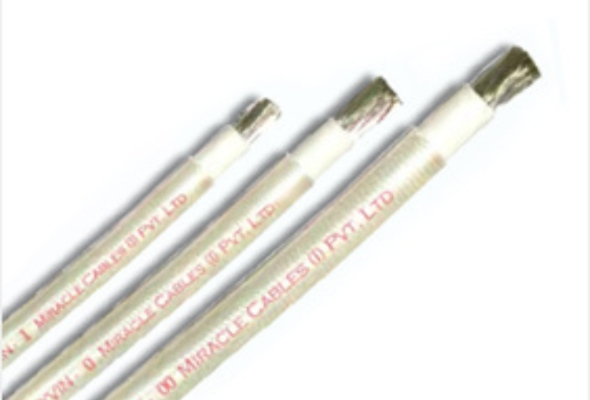

Miracle NYVIN™ cables are single Core, Annealed Tinned Copper Conductor, Heat Resistance 1050C Poly Vinyl Chloride (HR-PVC) insulation cables with Fiber Glass, Nylon Braided Nylon Lacquering.
These Cables are traditionally used in Air Craft wiring. These cables are economical and efficient to use as UPS Battery Cable, UPS Wiring, Battery bank interconnections, Panel Board wirings, interconnection wires apart from vari-ous othersuitable applications.
These cables are suitable for use in continuous service. It has conductor temperature rating of 1050C.Cable ambient temperatures – 300C to 650C. Uninyvin has good moisture and abrasion resistance. Good resistance to fuels,oils and alkalis. Miracle NYVIN™ conforms standard specification as per BSG- 177.
| Uninyvin Cable | Size(area) | Conductor Diameter”Max.” | Overall Diameter”Max.” | Conductor Resistance at 200C”Max” | Max Current Rating “Amps” |
| Core | Sq.mm | mm | mm | O/900m | BS-G-177 |
| 22 | 0.347 | 0.838 | 2.00 | 49.660 | 11 |
| 20 | 0.566 | 1.04 | 2.30 | 30.950 | 14 |
| 18 | 0.966 | 1.32 | 2.50 | 17.820 | 18 |
| 16 | 1.17 | 1.55 | 2.80 | 14.700 | 21 |
| 14 | 2.05 | 1.95 | 3.40 | 8.410 | 31 |
| 12 | 3.22 | 2.43 | 3.80 | 5.350 | 43 |
| 10 | 5.33 | 3.15 | 5.00 | 3.230 | 61 |
| 8 | 8.76 | 4.24 | 6.30 | 1.970 | 87 |
| 6 | 13.3 | 5.54 | 7.50 | 1.300 | 115 |
| 4 | 21.5 | 6.90 | 9.30 | 0.802 | 160 |
| 2 | 33.3 | 8.76 | 11.00 | 0.517 | 200 |
| 1 | 40.7 | 9.75 | 12.20 | 0.423 | 220 |
| 0 | 53.0 | 11.0 | 13.70 | 0.325 | 240 |
| 00 | 68.3 | 12.4 | 15.40 | 0.252 | 270 |
| 000 | 84.2 | 13.9 | 16.90 | 0.204 | 300 |
| 0000 | 109 | 15.6 | 18.70 | 0.158 | 350 |
